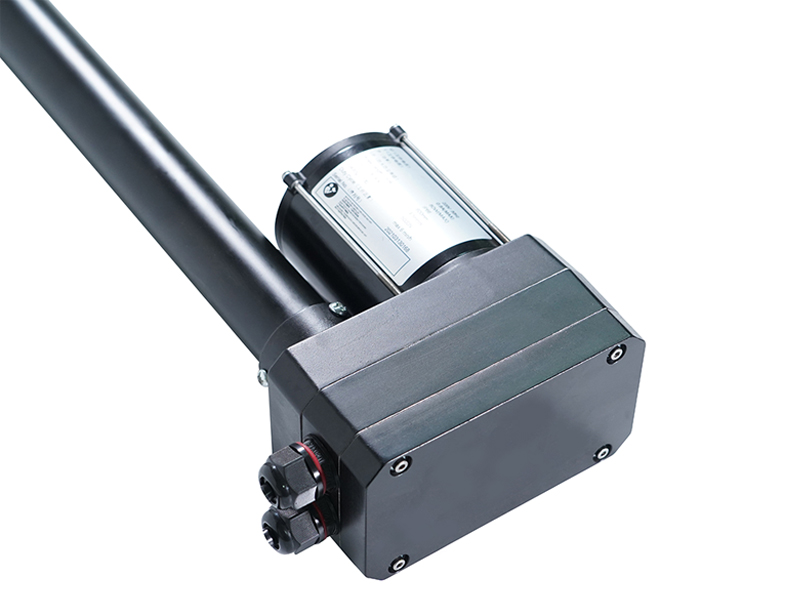

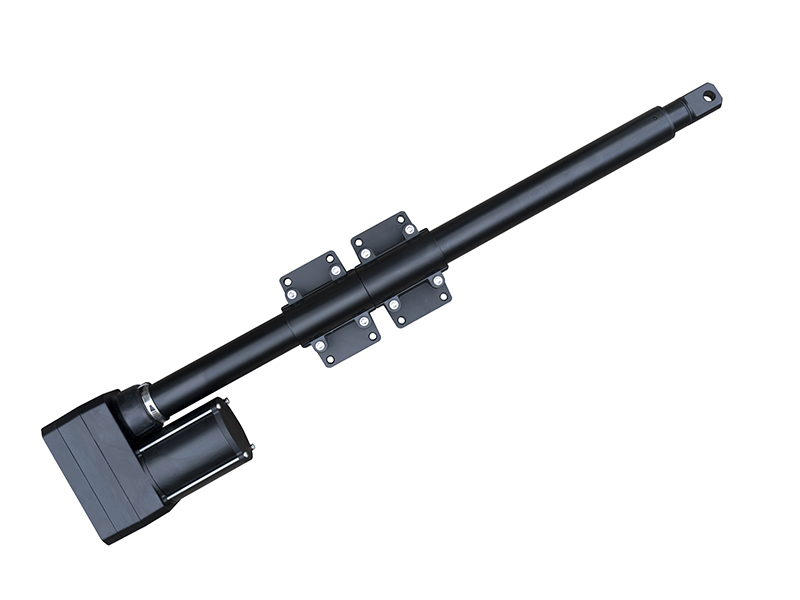

Linear Actuators U12B

• Voltage: 220V AC
• Stroke: 300/450/600/900mm (12/18/24/35 inches), customizable
• Load capacity: 5000N
• Rated speed: 4.5mm/s
• Waterproof rating: IP66
• Power: 200W
• Position feedback: Potentiometer
• Power cable: 4-core cable, 1.25m length

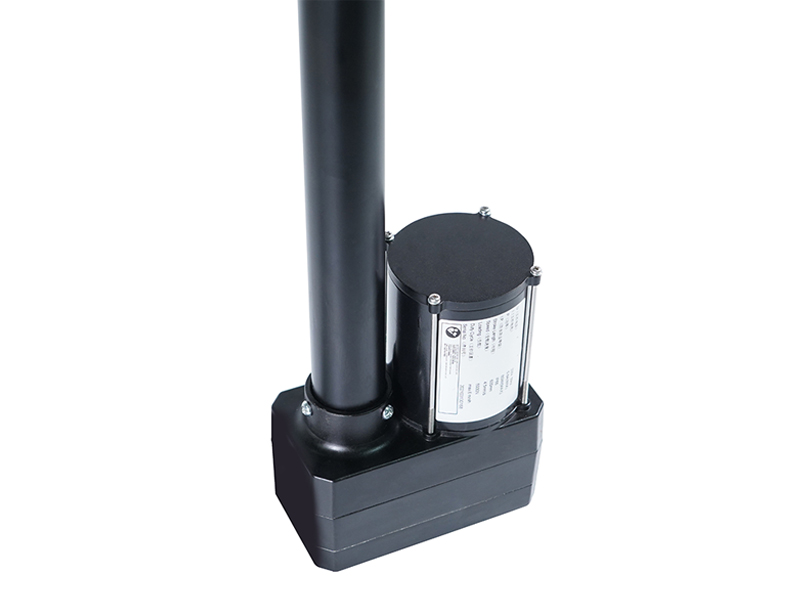

TOMUU U12B is an electric linear actuator designed for livestock farm automation. Built for large-scale breeding environments, it provides stable linear motion, precise position control, and reliable protection for automated ventilation, feeding, and livestock housing adjustment systems.

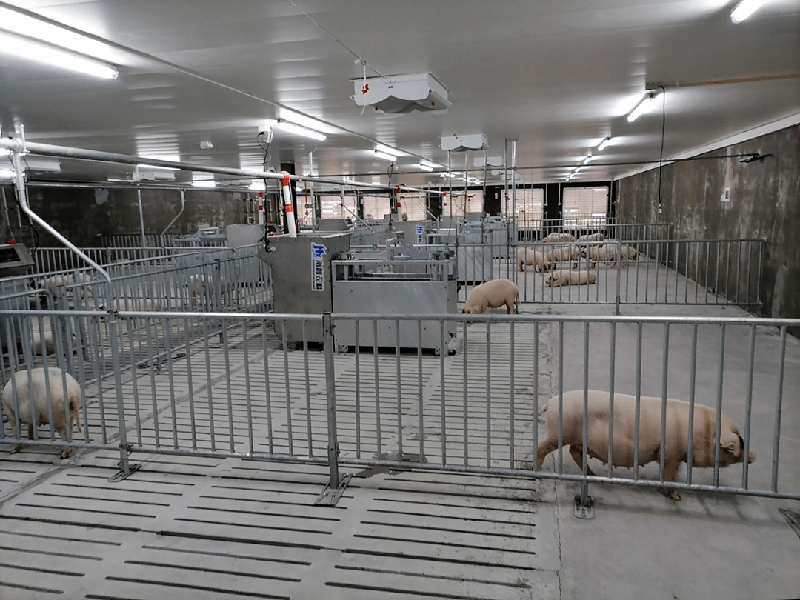

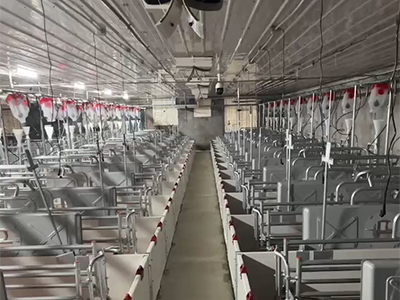

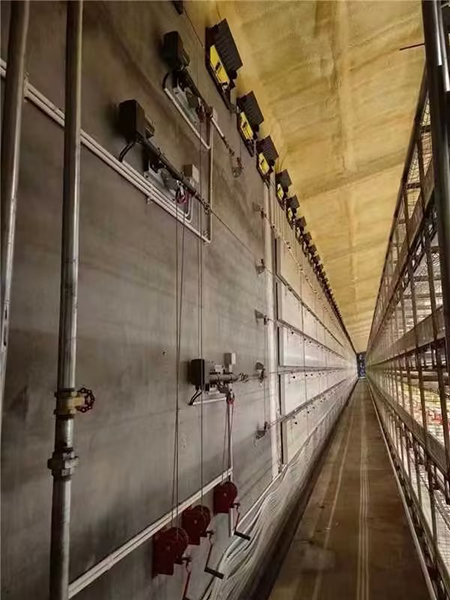

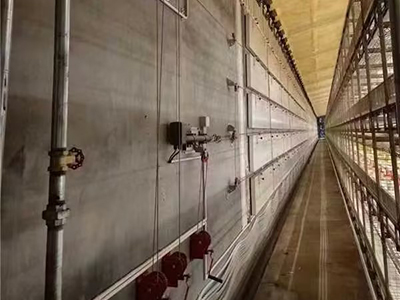

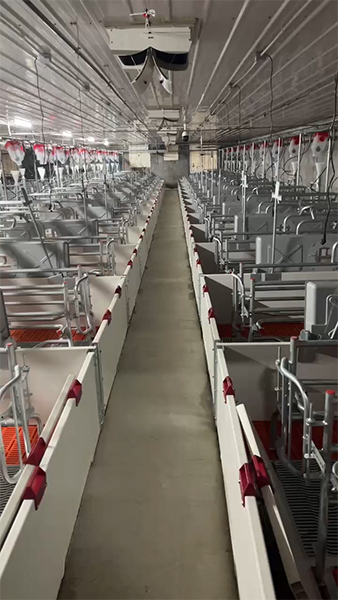

The electric linear actuator can be used in ventilation window opening, feed door control, feeding equipment adjustment, and other motion-control applications in pig farms, poultry houses, cattle farms, and similar livestock facilities. Compared with pneumatic and hydraulic drives, the electric actuator operates without oil leakage, requires less routine maintenance, and offers easier installation, lower energy consumption, and more accurate positioning for automated farm equipment.

• Powered directly by 220V AC, the actuator delivers a rated load of 5000N at an operating speed of 4.5mm/s and 200W power, providing stable thrust for livestock automation equipment.
• Stroke options of 300, 450, 600, and 900 mm are available, with customization support for different installation layouts and equipment requirements of livestock housing.
• The IP66-rated structure protects the actuator against dust, moisture, and water spray, allowing the linear actuator to operate stably in humid, dusty, and high-pressure flush cleaning farm environments.
• Potentiometer feedback enables closed-loop position control for more accurate equipment adjustment.
• The integrated electric and manual operation design allows manual adjustment during power failure or emergency conditions, improving operational safety and equipment reliability.

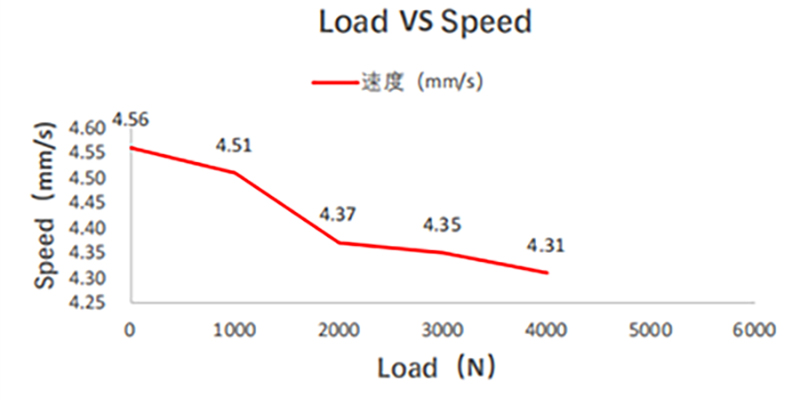

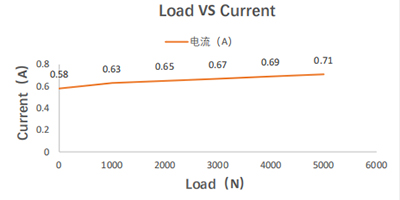

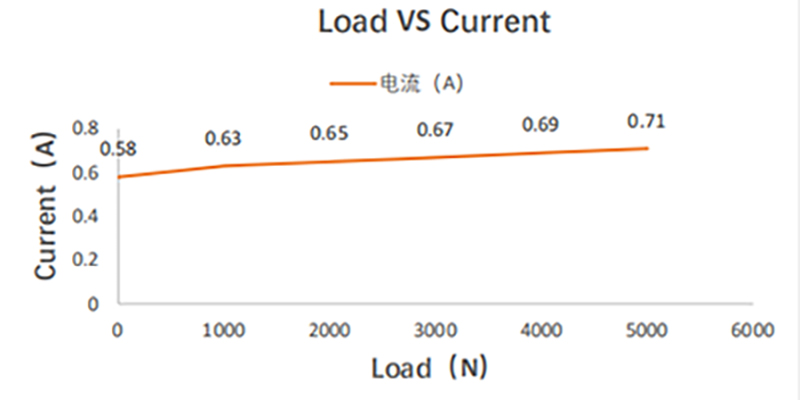

Load VS Current & Speed
