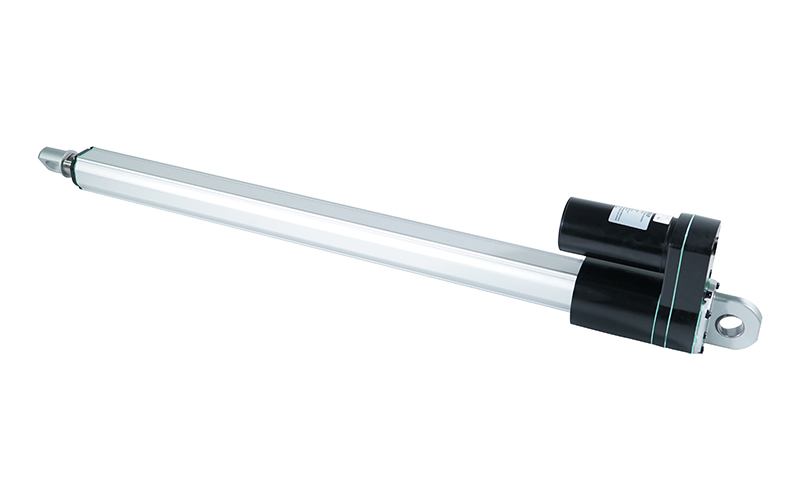

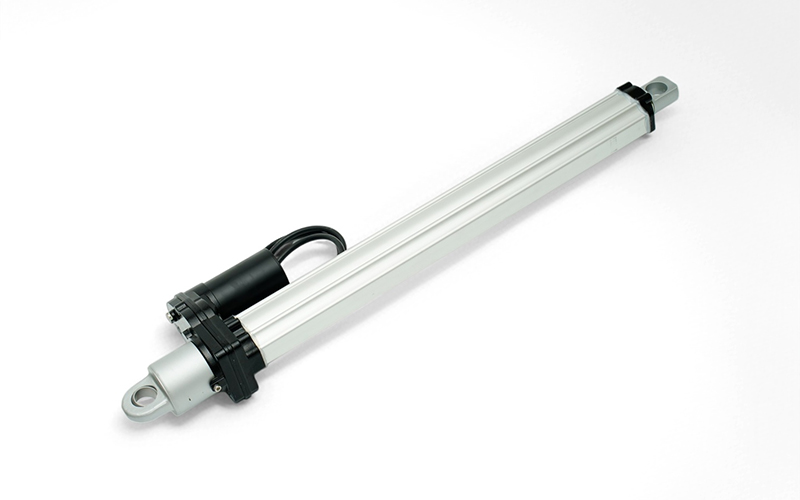

Linear Actuators U20

• Voltage: 12V DC/24V DC/48V DC
• Load capacity: 6000N/10000N /20000N/24000N/31000N/42000N/43000N
• Stroke: 300mm/450mm/500mm600mm/700mm/800mm/900mm/1000mm

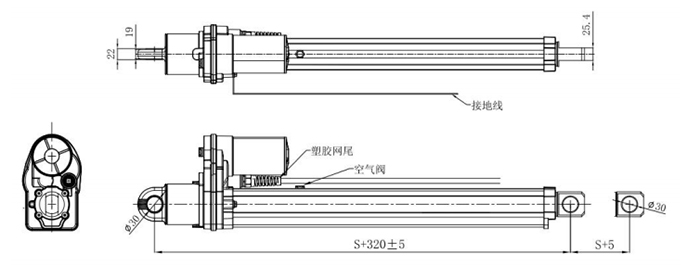

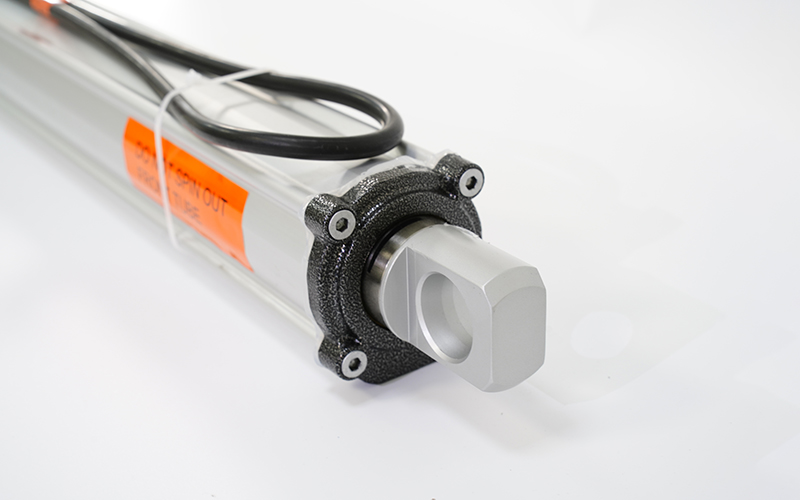

• Front mounting hole: 20mm/30mm
• Protection rating: IP54/IP65/IP66
• Position feedback: None/hall sensor
• Connector: Tinned wire leads/customized
• Cable length: 1.0m/1.2m/1.5m/customized

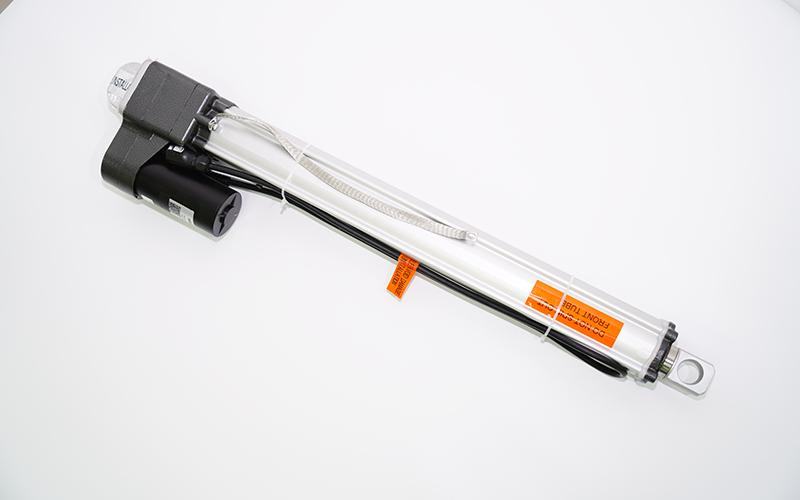

TOMOO U20 linear actuator is built with high thrust output and a robust structure for reliable operation in harsh outdoor environments. The actuator supports multiple screw options, position feedback configurations, up to IP66 protection ratings, and connector choices, allowing it to meet different system requirements.

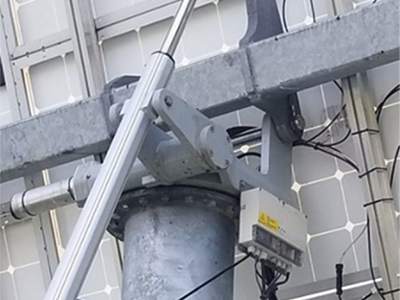

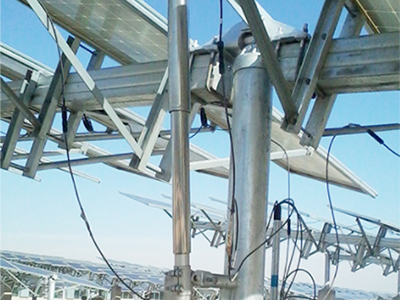

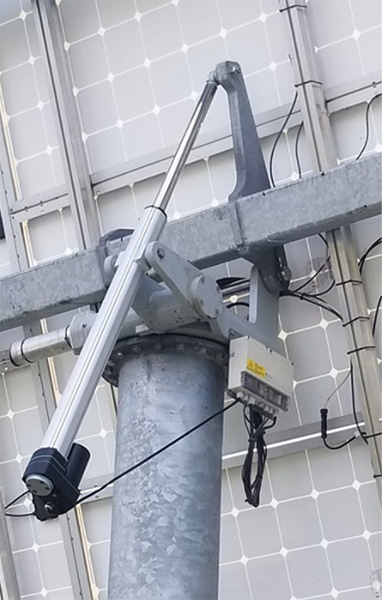

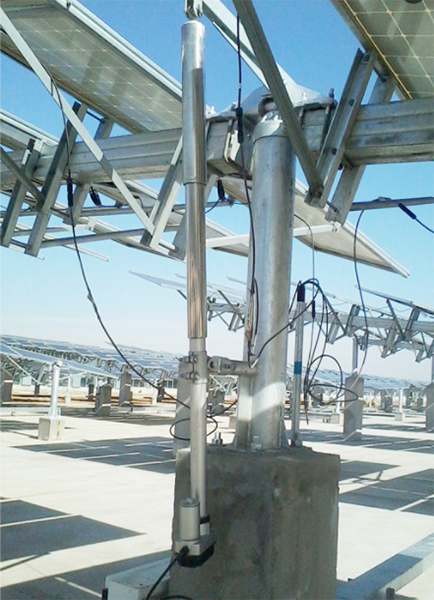

With a robust all-metal housing, sealed protection design, built-in limit switches, and strong self-locking capability, the actuator provides stable linear motion with reduced maintenance needs. These features make it a practical actuator solution for large-scale solar tracking systems and other demanding outdoor applications.

• Outdoor Protection: Available with up to IP66 protection, the actuator is suitable for outdoor installations exposed to dust, rain, and changing weather conditions. The waterproof motor cover and sealed structure help protect internal components during long-term use.
• All-Metal Construction: The aluminum alloy outer housing and stainless steel inner tube provide structural strength and corrosion resistance for outdoor applications.

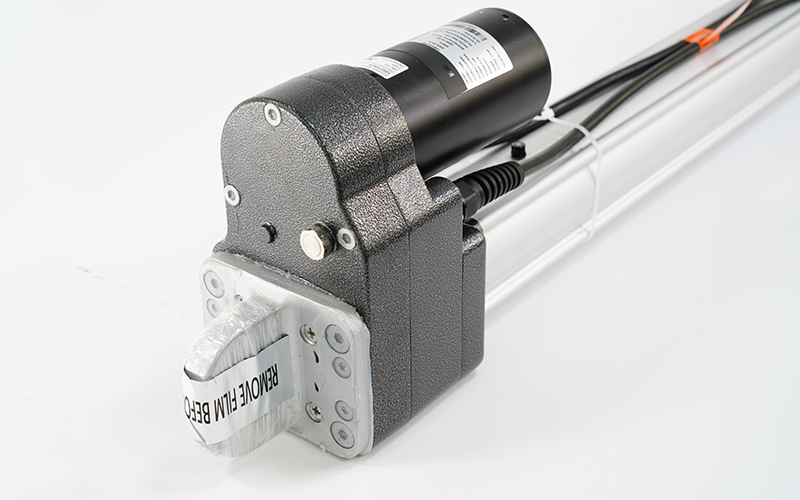

• Metal Gearbox: Robust and durable construction ensures stable power transmission under high-load operating conditions.
• Strong Self-Locking Capability: The actuator helps hold position when stopped, supporting stable tracker positioning under load.
• Built-in Limit Switches: Integrated limit switches enable automatic stop to protect the actuator and connected equipment.
• Specialized Grease: Special grease supports operation across a wide temperature range from -40°C to 65°C.
• Overload Protection Testing: Voltage and load performance are tested to help ensure actuator protection under demanding operating conditions.
